Regular filter maintenance

Please follow the steps in the video.

Find the text version of the step-by-step guide instead, under "Is there anything else we can help you with?"

Regular filter maintenance

Slide the filter cleaning brush on to the filter mesh.

Using an up and down motion, clean the filter cage with the Filter cleaning brush until all the debris has been removed.

Hold the handle of your machine firmly and pull the filter cage down and away from the machine.

Wash the filter cage under a warm, running tap.

Shake the filter cage to remove the majority of the excess water, then leave to dry well naturally.

Using an up and down motion, clean the filter with the Filter cleaning brush until all the debris has been removed.

WARNING: Do not use water to clean the filter.

Rotate the filter cage back into position, ensuring the correct alignment.

WARNING: Rotate clockwise to lock before use.

Remove attachment

Push down on the button to release.

Re-fit attachment

Push the accessory into the Main body until it locks securely into place.

Check all attachments

Please try to connect all attachments to the appliance.

Airflow selection

The level of sound from your appliance will vary depending on the airflow selected. Adjust the airflow control to each of the 3 airflow speeds.

Regular filter maintenance

Please follow the steps in the video.

Find the text version of the step-by-step guide instead, under "Has this resolved the problem?"

The filter area being obstructed during use can also affect performance.

Regular filter maintenance

Slide the filter cleaning brush on to the filter mesh.

Using an up and down motion, clean the filter cage with the Filter cleaning brush until all the debris has been removed.

Hold the handle of your machine firmly and pull the filter cage down and away from the machine.

Wash the filter cage under a warm, running tap.

Shake the filter cage to remove the majority of the excess water, then leave to dry well naturally.

Using an up and down motion, clean the filter with the Filter cleaning brush until all the debris has been removed.

WARNING: Do not use water to clean the filter.

Rotate the filter cage back into position, ensuring the correct alignment.

WARNING: Rotate clockwise to lock before use.

Cleaning the filter

Please follow the steps in the video.

Find the text version of the step-by-step guide instead, under "Has this resolved the problem?"

Blocked filter maintenance

Hold the handle of your machine firmly and pull the filter cage down and away from the machine.

Leave the filter cage to soak in warm soapy water for 30 minutes.

Using an up and down motion, clean the filter cage with the Filter cleaning brush until all the debris has been removed.

Wash the filter cage under a warm, running tap.

Shake the filter cage to remove the majority of the excess water, then leave to dry well naturally.

Using an up and down motion, clean the filter with the Filter cleaning brush until all the debris has been removed.

WARNING: Do not use water to clean the filter.

Rotate the filter cage back into position, ensuring the correct alignment.

WARNING: Rotate clockwise to lock before use.

Using your machine

Please follow the steps in the video.

Find the text version of the step-by-step guide instead, under "Is the machine performing as expected?"

Introducing the section of hair to the barrel

Start with your hair 80% dry, that looks dry but is cool to the touch.

Separate a section of hair about 5cm wide, hold 10cm from the ends. Hold the Dyson Airwrap™ styler vertically.

Hold the Dyson Airwrap™ styler vertically.

Introduce the end of the section of hair to the Dyson Airwrap™ styler. Let the air take the hair section and curl it automatically around the barrel.

Move the barrel towards the roots to create the curl

No need to rotate the Dyson Airwrap™ styler or twist your hand, keep it vertical and let the air take the hair.

Once the hair has successfully introduced, let go of the section of hair and slowly move the Dyson Airwrap™ styler towards the roots.

Hold for the recommended time and then press the cold shot button or slide the power button up (continuing to hold the Dyson Airwrap™ styler at a vertical angle).

Recommended hold and cold shot times:

Fine hair type for 5 second hold time (MAX), and 5 second cold shot. (MAX)
Medium hair type: 10 second hold time (MAX), and 5 second cold shot (MAX).
Thick hair type: 15 second hold time (MAX), and 10 second cold shot (MAX).

Turn off and release the curl

Once the curl has been set, turn off the Dyson Airwrap™ styler.

Keep the barrel vertical and slide out of your hair in a downward movement to release your curl.

You can try different temperatures and airflow to create styles to suit you and personalise styling to your hair type. For more information and tips see: www.dyson.com/myairwrap.

Check all attachments

Please try to connect all attachments to the appliance.

Performance

Please select the appropriate option.

Airflow control

Use the airflow control slider to select the appropriate airflow setting.

Remove the filter

Hold the handle of your machine and pull the filter cage downwards, onto the cable.

Gently pull open the filter cage and slide it off the cable.

Test the machine with the filter removed.

Regular filter maintenance

Please follow the steps in the video.

Find the text version of the step-by-step guide instead, under "Has this resolved the problem?"

Blocked filter maintenance

Slide the filter cleaning brush on to the filter mesh.

Using an up and down motion, clean the filter cage with the Filter cleaning brush until all the debris has been removed.

Hold the handle of your machine firmly and pull the filter cage down and away from the machine.

Wash the filter cage under a warm, running tap.

Shake the filter cage to remove the majority of the excess water, then leave to dry well naturally.

Using an up and down motion, clean the filter with the Filter cleaning brush until all the debris has been removed.

WARNING: Do not use water to clean the filter.

Rotate the filter cage back into position, ensuring the correct alignment.

WARNING: Rotate clockwise to lock before use.

Temperature control

This appliance has a non-self-resetting thermal cut-out safety device to prevent overheating.

If your appliance cuts out, unplug it from the mains supply socket and leave to cool.

ON/OFF switch

The appliance is switched on using the sliding ON/OFF switch.

Remove the filter

Hold the handle of your machine and pull the filter cage downwards, onto the cable.

Gently pull open the filter cage and slide it off the cable.

Test the machine with the filter removed.

Slide switch

The appliance is switched on using the sliding ON/OFF switch. Check the lights on the appliance.

Check electrical supply

Is the power cord or plug damaged?

Are the other household appliances working?

Does the Airwrap™ work when plugged into another socket?

Regular filter maintenance

Please follow the steps in the video.

Find the text version of the step-by-step guide instead, under "Has this resolved the problem?"

Regular filter maintenance

Please follow the steps in the video.

Find the text version of the step-by-step guide instead, under "Has this resolved the problem?"

Check voltage supply

If your appliance will not switch on, please check that it is being used in a country with an electricity supply within the same range as that of where your appliance was purchased:

220-240V

Australia
China
Egypt
Europe
Greenland
Hong Kong
India
Indonesia
Ireland
Malaysia
New Zealand
Peru
Philippines
Russia
Singapore
South Africa
South Korea
Thailand
United Arab Emirates
United Kingdom

100-127V

Canada
Japan
Mexico
Taiwan
United States of America

For example, if you take a machine purchased in the United Kingdom to Europe it will work. If you take a machine purchased in the United States to Europe, it will not switch on.

ON/OFF switch

The machine is switched off using the sliding ON/OFF switch.

Check electrical supply

Is the power cord or plug damaged?

Are the other household appliances working?

Does the Airwrap™ work when plugged into another socket?

Remove the filter

Hold the handle of your machine and pull the filter cage downwards, onto the cable.

Gently pull open the filter cage and slide it off the cable.

Test the machine with the filter removed.

Which light is showing?

When the appliance has intermittent power, please check which light is showing.

Check power

Ensure the machine is plugged in and power switch turned on.

Check electrical supply

Please check that the appliance is being used in a country with an electricity supply within the same range as that of where your appliance was purchased:

220-240V

Australia
China
Egypt
Europe
Greenland
Hong Kong
India
Indonesia
Ireland
Malaysia
New Zealand
Peru
Philippines
Russia
Singapore
South Africa
South Korea
Thailand
United Arab Emirates
United Kingdom

100-127V

Canada
Japan
Mexico
Taiwan
United States of America
For example, if you take a machine purchased in the United Kingdom to Europe it will work. If you take a machine purchased in the United States to Europe, it will not switch on.

Regular filter maintenance

Please follow the steps in the video.

Find the text version of the step-by-step guide instead, under "Has this resolved the problem?"

Cleaning the appliance

To clean the Main body of the appliance, use a dry cloth.

WARNING: Do not use any lubricants, cleaning agents, polishes or air fresheners on any part of the appliance.

Smell

Within the first few uses it is normal to expect a smell from any brand new appliance with a heater element (e.g. toaster/oven/kettle etc.)

The smell will fade with time and usage.

Cool touch tip

Some of the attachments have a cool touch tip. During use, the curlers and round volumising brush will get hot. To change to another attachment, hold the tip.

Take care when handling hot attachments

Hold the attachment only in the area indicated. Some attachments may need occasional cleaning.

Replacement part required

This would indicate that there is an issue with the attachment.

Which light is showing?

Please select which light is appearing.

Connecting the attachment

Push the accessory into the Main body until it locks securely into place.

Test the Smoothing brush attachment

Turn the appliance on and wait for it to heat up to operating temperature.

Use the smoothing brush attachment to check whether the bristles are now changing direction during use as expected.

Finding the machine serial number

The serial number can be found in the following locations:

On the front of the instruction manual.

On the box of the machine.

On the power cord near the plug.

Please open the PDF for the user guide.

Getting started

Please follow the steps in the video.

Find the text version of the step-by-step guide instead, under "Is there anything else we can help you with?"

Getting started

Begin with wet hair, then dry to damp using the Pre-styling dryer.

Use the 30mm barrel to practice.

Select full power and high heat.

Take a small section of hair and hold it about 10cm from the end.

Introduce the ends to the arrows and move the barrel towards your head without twisting.

Hold until your hair is dry.

Push the cold shot to set the curl.

Switch off and pull down to release the curl.

To recap:

Dry hair until damp.

Introduce approximately 10cm of ends of hair to the styler. Do not twist.

Use a cold shot to set the style.

Switch off and release.

Regular filter maintenance

Please follow the steps in the video.

Find the text version of the step-by-step guide instead, under "Is there anything else we can help you with?"

Styling

Here at Dyson we are the experts in the technology and how it works, but for information on the latest trends and how to create specific styles, we would encourage you to take a look online.

We have a page on our website dedicated to styling tips and tutorials, just visit www.dyson.co.uk/supersonic.

You can also follow us on social media, we've worked with some top hair and beauty professionals and vloggers to create some styling tips. Just search for 'Dyson Supersonic' or 'Dyson Hair' on YouTube, Instagram, Facebook and Twitter.

You can also follow us on social media, we've worked with some top hair and beauty professionals and vloggers to create some styling tips. Just search for 'Dyson Airwrap' or 'Dyson Hair' on YouTube, Instagram, Facebook and Twitter.

Airflow control

3 airflow speeds.

Temperature control

2 heat settings plus a cold setting to finish your style.

Power on/off with cold shot

Sliding switch with cold shot to set the curl.

Flashing white LED light

The white LED light advises to clean the filter. Select "Regular filter maintenance" for details.

Flashing red LED light

The red LED light advises to clean the filter. Please select "Regular filter maintenance" for details.

If the light stays red, please contact the Dyson Helpline.

Removable filter cage

Easy to remove for cleaning. Please select "Regular filter maintenance" for details.

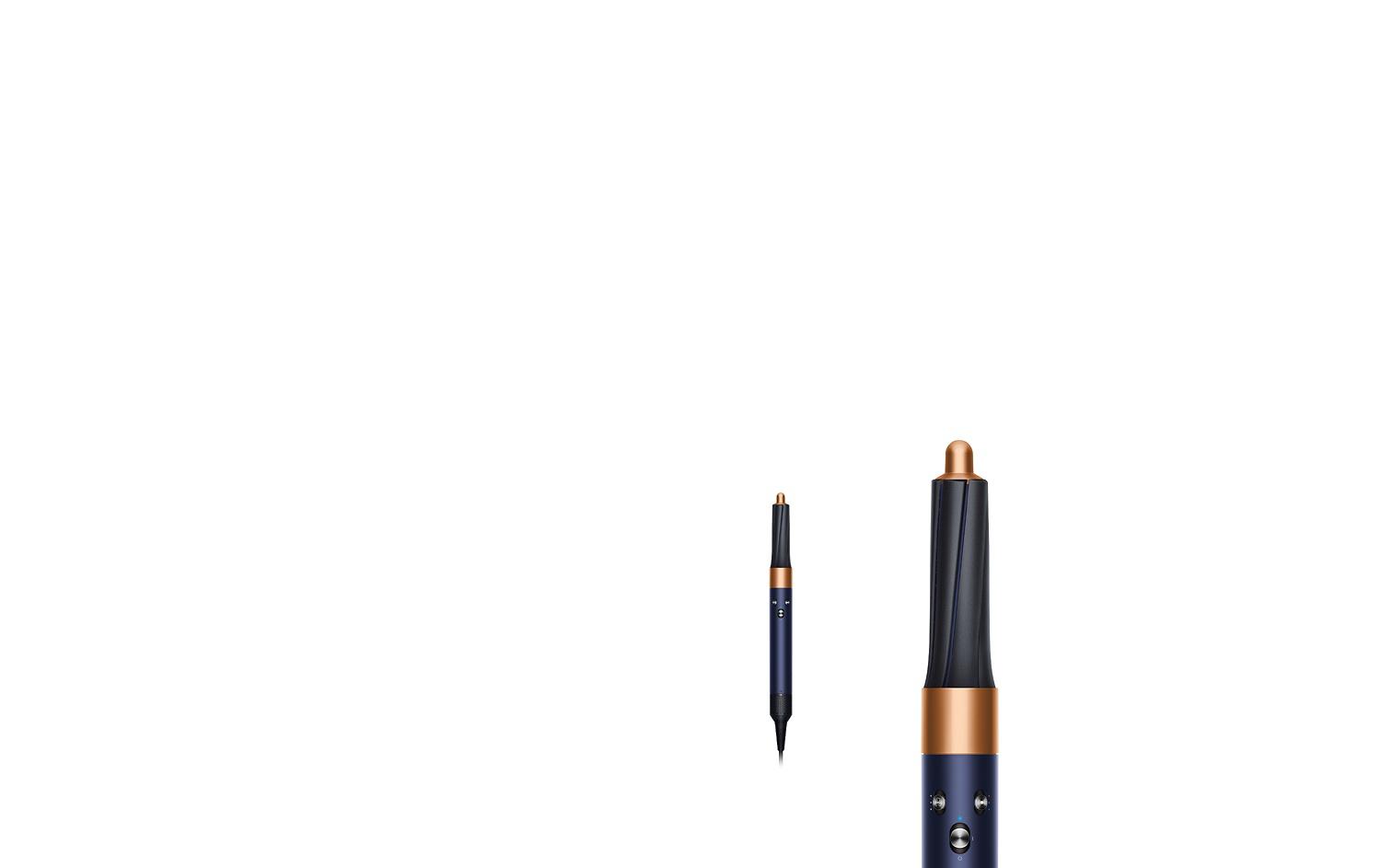

Dyson Airwrap™ styler 30mm

For natural, voluminous curls and waves.

Use when your hair is 80% dry. The barrels have clockwise/anti-clockwise arrows to show curl direction.

Connecting the attachment

Turn accessory into the Main body until it clicks into place.

Cool touch tip

During use, the curlers will get hot.

To change curler to another accessory, hold the tip.

Changing attachments

To change accessory, pull down on the switch to release.

Dyson Airwrap™ styler 40mm

For looser, open curls.

Use when your hair is 80% dry. Set the temperature and airflow to max.

Connecting the attachment

Turn accessory into the Main body until it clicks into place.

Cool touch tip

During use, the curlers will get hot.

To change curler to another accessory, hold the tip.

Changing attachments

To change accessory, pull down on the switch to release.

Smoothing brush

For a smooth, blow-dry finish.

With towel-dry hair, use the brush on top for a smooth finish and underneath to add shape and volume.

Connecting the attachment

Turn accessory into the Main body until it clicks into place.

Changing attachments

To change accessory, pull down on the switch to release.

Pre-styling dryer

To prepare your hair so that it is 80% dry, cool to the touch and ready to style.

Connecting the attachment

Turn accessory into the Main body until it clicks into place.

Changing attachments

To change accessory, pull down on the switch to release.

Smoothing brush

For a smooth, blow-dry finish.

With towel-dry hair, use the brush on top for a smooth finish and underneath to add shape and volume.

Connecting the attachment

Turn accessory into the Main body until it clicks into place.

Changing attachments

To change accessory, pull down on the switch to release.

Round volumising brush

For natural, voluminous curls and waves.

Use when your hair is 80% dry. The barrels have clockwise/anti-clockwise arrows to show curl direction.

Connecting the attachment

Turn accessory into the Main body until it clicks into place.

Cool touch tip

During use, the round volumising brush will get hot.

To change the round volumising brush to another accessory, hold the tip.

Changing attachments

To change accessory, pull down on the switch to release.

Using your machine abroad

Your appliance may be used in a country with an electricity supply within the same range as that of where your appliance was purchased:

If the voltage is 220-240V then the following countries are applicable:

220-240V

Australia
China
Egypt
Europe
Greenland
Hong Kong
India
Indonesia
Ireland
Malaysia
New Zealand
Peru
Philippines
Russia
Singapore
South Africa
South Korea
Thailand
United Arab Emirates
United Kingdom

If the voltage is 100-127V then the following countries are applicable:

100-127V

Canada
Japan
Mexico
Taiwan
United States of America

For example, if you take a machine purchased in the United Kingdom to Europe it will work. If you take a machine purchased in the United States to Europe, it will not switch on.

Introducing the section of hair to the barrel

Start with your hair 80% dry, that looks dry but is cool to the touch.

Separate a section of hair about 5cm wide, hold 10cm from the ends. Hold the Dyson Airwrap™ styler vertically.

Hold the Dyson Airwrap™ styler vertically.

Introduce the end of the section of hair to the Dyson Airwrap™ styler. Let the air take the hair section and curl it automatically around the barrel.

Move the barrel towards the roots to create the curl

No need to rotate the Dyson Airwrap™ styler or twist your hand, keep it vertical and let the air take the hair.

Once the hair has successfully introduced, let go of the section of hair and slowly move the Dyson Airwrap™ styler towards the roots.

Hold for the recommended time and then press the cold shot button or slide the power button up (continuing to hold the Dyson Airwrap™ styler at a vertical angle).

Recommended hold and cold shot times:

Fine hair type for 5 second hold time (MAX), and 5 second cold shot. (MAX)
Medium hair type: 10 second hold time (MAX), and 5 second cold shot (MAX).
Thick hair type: 15 second hold time (MAX), and 10 second cold shot (MAX).

Turn off and release the curl

Once the curl has been set, turn off the Dyson Airwrap™ styler.

Keep the barrel vertical and slide out of your hair in a downward movement to release your curl.

You can try different temperatures and airflow to create styles to suit you and personalise styling to your hair type. For more information and tips see: www.dyson.com/myairwrap.

Cleaning the appliance

To clean the Main body of the appliance, use a dry cloth.

WARNING: Do not use any lubricants, cleaning agents, polishes or air fresheners on any part of the appliance.
