Let's get your machine working

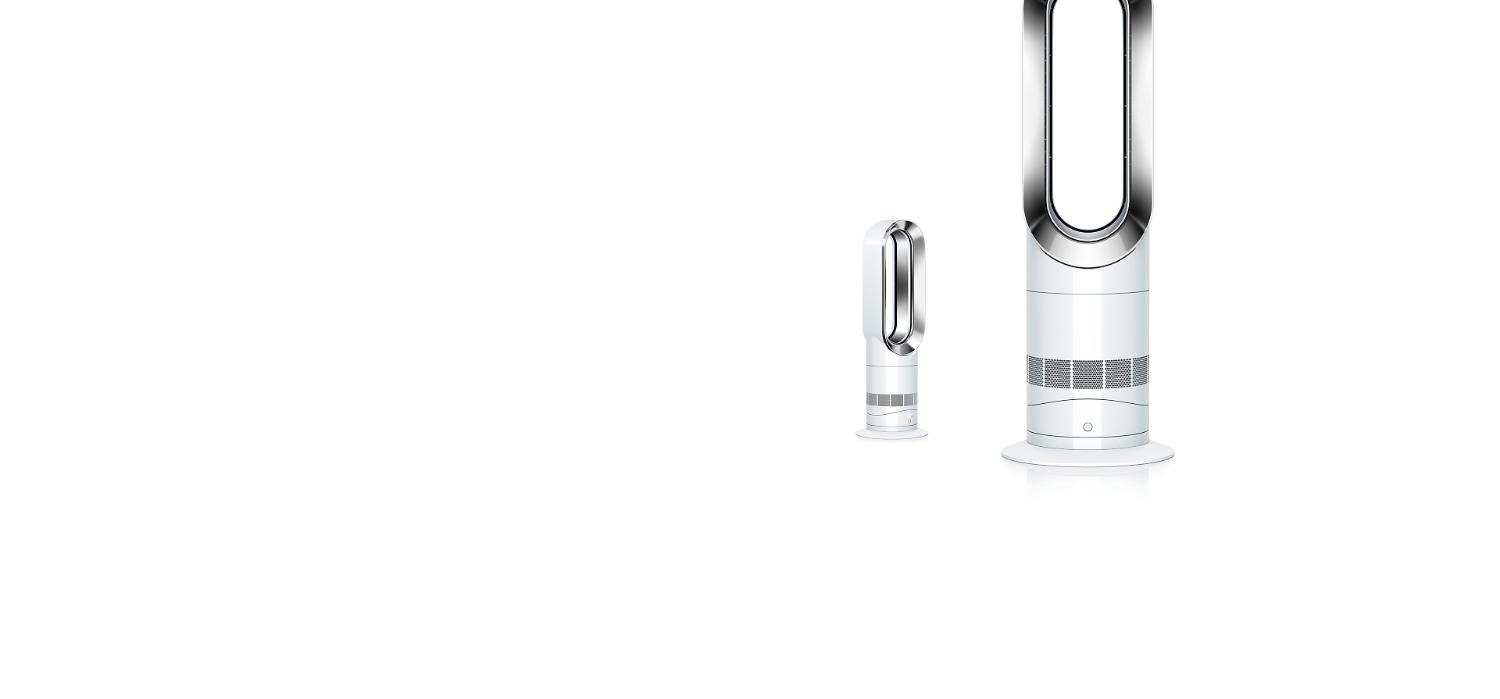

Dyson Hot + Cool™ fan heater (White/Silver)
See all steps

Please select the appropriate option

Test the other buttons on the remote

1) On/Off 2) Cooling mode 3) Airflow speed 4) Heating control 5) Sleep timer 6) Oscillation 7) Focused mode 8) Diffused mode

Troubleshooting image

Has this resolved the problem?

We're glad the problem's been solved.

Please let us know if there's anything else we can help you with.

Press power button

Airflow can also be set on the machine. Press and hold the power button to roll through settings 1 to 10.

Troubleshooting image

Has this resolved the problem?

Change the remote battery

Loosen the base and pull it away from the remote.

Troubleshooting image

Loosen the base and pull it away from the remote. Replace the battery with type CR 2032.

Troubleshooting image

Has this resolved the problem?

Please call us to resolve this problem.

It looks like the Remote control isn't working. We know how to fix it – we just can’t do it online.

One of our Dyson experts can help you get the parts or assistance you need.

Remote control

Part no. 966538-01

Stores magnetically on top of your machine.

€33.82

Remote control

Remote control

Part no. 966538-01

Stores magnetically on top of your machine.

€33.82

Has the machine fallen over or is the machine on an angle?

Power cycle

Before following the steps, press the power button with a firm touch for 1 second.

Troubleshooting image

Hard reset

If the power cycle does not work try a 'hard reset'.

Turn the power OFF and unplug the machine, or switch off at the mains socket, for 30 seconds and then turn back ON.

Troubleshooting image

Plug the machine back in and retest.

Has this resolved the problem?

We need a little more information to help us solve your issue.

Please contact our customer service team via live chat.

Check the machine

The heater is fitted with automatic cut-out switches that operate if the heater tips over or overheats. If the cut-out operates, unplug the heater and allow it to cool.

Has this resolved the problem?

This issue can occur if the machine is running and the power is cut e.g. plug pulled out, power cut etc.

To reset the machine, turn the power off (using either the power button on the remote or the Main body), wait 60 seconds and then turn back on.

Troubleshooting image

Plug the machine back in and retest.

Has this resolved the problem?

Change target temperature

The machine will do this if the previously entered temperature is below the current room temperature and above 32F/0°C.

Please change the target temperature to 32F/0°C and retry the machine.

Use the buttons on the machine, not the remote control. To use as a heater please select a temperature above the current room temperature.

Troubleshooting image

If only the remote isn't working, please select the 'Remote control not working' from the drop down list.

Has changing the temperature setting resolved the issue?

Check remote is being used correctly

Please ensure that the remote is facing the correct way and has a clear line of sight to the base of the machine.

Troubleshooting image

Has pointing the remote at the machine without obstructions resolved the issue?

Replacing the remote control battery

Please follow steps in the video.

Has reinserting the battery resolved the issue?

Test the remote

Squeeze on the remote control below the buttons and operate one of the functions.

Troubleshooting image

Has squeezing the remote resolved the issue?

Please call us to resolve this problem.

It looks like the Remote control isn't working. We know how to fix it – we just can’t do it online.

One of our Dyson experts can help you get the parts or assistance you need.

Remote control

Part no. 966538-01

Stores magnetically on top of your machine.

€33.82

Remote control

Remote control

Part no. 966538-01

Stores magnetically on top of your machine.

€33.82

Camera test

The remote LED is invisible to the human eye, only a digital camera can show this is working.

Using a digital phone or camera, aim the LED at the lens and see if a red light shines through it.

NB: This check will not work for iPhone 5s or 6.

Troubleshooting image

Does the LED show through the camera screen?

Move obstructions

Please retry the remote with the machine again, ensuring no obstructions.

Troubleshooting image

Does the remote control work?

Replace the batteries

Please replace the battery in the remote and call back if the problem persists.

Troubleshooting image

Please select the appropriate option

Please call us to resolve this problem.

It looks like the Remote control isn't working. We know how to fix it – we just can’t do it online.

One of our Dyson experts can help you get the parts or assistance you need.

Remote control

Part no. 966538-01

Stores magnetically on top of your machine.

€33.82

Remote control

Remote control

Part no. 966538-01

Stores magnetically on top of your machine.

€33.82

Replace the batteries

Replace the battery in the remote control and call back if the problem persists.

Replace the battery with type CR 20

Please select the appropriate option

Please call us to resolve this problem.

It looks like the Remote control isn't working. We know how to fix it – we just can’t do it online.

One of our Dyson experts can help you get the parts or assistance you need.

Remote control

Part no. 966538-01

Stores magnetically on top of your machine.

€33.82

Remote control

Remote control

Part no. 966538-01

Stores magnetically on top of your machine.

€33.82

Power cycle

Before following the steps, press the power button with a firm touch for 1 second.

Hard reset

If the power cycle does not work try a 'hard reset'.

Turn the power OFF and unplug the machine, or switch off at the mains socket, for 30 seconds and then turn back ON.

Troubleshooting image

Plug the machine back in and retest.

Has this resolved the problem?

Test a button on the machine

Press the power ON/OFF button on the front of the machine.

Troubleshooting image

Does the machine turn off if you press the power button on the machine?

Test the other buttons on the remote

1) On/Off 2) Cooling mode 3) Airflow speed 4) Heating control 5) Sleep timer 6) Oscillation 7) Focused mode 8) Diffused mode

Troubleshooting image

Has this resolved the problem?

Check the battery

Unscrew the remote control's battery compartment.

Troubleshooting image

Loosen the base and pull it away from the remote. Replace the battery with type CR 2032.

Troubleshooting image

Has this resolved the problem?

Please call us to resolve this problem.

It looks like the Remote control isn't working. We know how to fix it – we just can’t do it online.

One of our Dyson experts can help you get the parts or assistance you need.

Remote control

Part no. 966538-01

Stores magnetically on top of your machine.

€33.82

Remote control

Remote control

Part no. 966538-01

Stores magnetically on top of your machine.

€33.82

Hard reset

Unplug the machine and leave it for 10 seconds.

Troubleshooting image

Plug the machine back in and retest.

Has this resolved the problem?

No power

Check that the household electrics are on.

Check the plug and power cord for signs of damage.

Try the machine in a different plug socket.

Has this resolved the problem?

Test the power button on the remote

Ensure correct button on remote is being pressed to turn the power On/Off.

Troubleshooting image

Test the other buttons on the remote

1) On/Off 2) Cooling mode 3) Airflow speed 4) Heating control 5) Sleep timer 6) Oscillation 7) Focused mode 8) Diffused mode

Troubleshooting image

Has this resolved the problem?

Check the battery

Unscrew the remote control's battery compartment.

Troubleshooting image

Loosen the base and pull it away from the remote. Replace the battery with type CR 2032.

Troubleshooting image

Has this resolved the problem?

We need a little more information to help us solve your issue.

But our Customer Support Team will be able to solve your problem.

Please contact our team via live chat.

We need a little more information to help us solve your issue.

But our Customer Support Team will be able to solve your problem.

Please contact our team via live chat.

Wipe the machine

The following areas should be checked and cleaned to maintain the machine's performance.

Loop amplifier - clean with a dry or damp cloth.

Main body - clean with a dry cloth

Shroud - clean with a dry cloth or soft brush

WARNING: Do not use polish or detergent on any part of the machine.

Troubleshooting image

Has this resolved the problem?

Machine is working normally

This is completely normal.

The machine will run very slowly when in idle mode to keep air flowing over the thermostat so it can constantly regulate the temperature of the air.

This is a characteristic of the product and cannot be resolved with an exchange or return to base repair.

There is no safety concern.

If the noise is intrusive, switching the machine off at the wall will stop the noise, or altering the position of the product in the room might make the noise less audible.

Is there anything else we can help you with?

Please select the appropriate option

Do not use polish or detergent on any part of the machine.

Cleaning required

The following areas should be checked and cleaned to maintain the machine's performance.

Loop amplifier - clean with a dry or damp cloth.

Main body - clean with a dry cloth

Shroud - clean with a dry cloth or soft brush

Is there anything else we can help with?

We're glad the problem's been solved.

Please let us know if there's anything else we can help you with.

Replacing the remote control battery

Please follow the steps in the video.

Is there anything else we can help you with?

How to replace the battery in the remote

Unscrew the remote control's battery compartment.

Troubleshooting image

Loosen the base and pull it away from the remote. Replace the battery with type CR 2032.

Is there anything else we can help you with?

Airflow speed

To change the airflow speed press the airflow control button.

The digital display will show the new speed; after 3 seconds it will change back to the target temperature.

Troubleshooting image

Diffused heating mode

Press the wide angle button to change from personal heating to whole room heating.

Carefully hold the base and the Main body. Tilt the amplifier forward or backward for the required airflow angle.

Heating and cool modes work in this mode.

Troubleshooting image

Personal heating mode

Press the narrow angle button to change from a whole room airflow to a personal directed airflow.

Heating and Cooling modes work in this way.

Troubleshooting image

Is there anything else we can help you with?

Assembling the machine

Lower the Main body onto the base, aligning the arrows.

Troubleshooting image

Turn the base clockwise until it clicks into place.

Troubleshooting image

The remote magnetically attaches to the top of the loop amplifier.

Is there anything else we can help you with?

Getting started

Please follow the steps in the video.

Is there anything else we can help you with?

Using the remote control

Aim the remote at the base of the machine.

Troubleshooting image

Remote buttons

1) On/Off 2) Cooling mode 3) Airflow speed 4) Heating control 5) Sleep timer 6) Oscillation 7) Focused mode 8) Diffused mode

Troubleshooting image

Is there anything else we can help you with?

Serial number location

The serial number can be found on the base of the machine.

Troubleshooting image

Is there anything else we can help you with?

Using the sleep timer

To set the sleep timer, press and hold the timer button to select the desired time.

Troubleshooting image

When time reaches zero, the appliance will go into standby mode.

Troubleshooting image

To cancel, reduce the time until two dashes appear.

Is there anything else we can help you with?

Please open the PDF for the user guide.

Is there anything else we can help you with?

Test the airflow button on the remote

Ensure correct button on remote is being pressed to adjust the airflow.

Troubleshooting image

Test the other buttons on the remote

1) On/Off 2) Cooling mode 3) Airflow speed 4) Heating control 5) Sleep timer 6) Oscillation 7) Focused mode 8) Diffused mode

Troubleshooting image

Has this resolved the problem?

Change the remote battery

Loosen the base and pull it away from the remote.

Troubleshooting image

Loosen the base and pull it away from the remote. Replace the battery with type CR 2032.

Troubleshooting image

Has this resolved the problem?

Paper test

The fan has a strong, smooth airflow when switched on. The airflow should be strong enough to lift a sheet of newspaper past 45 degrees.

Troubleshooting image

Hold a newspaper approximately 2 meters (6' 6'') away from the product with the airflow control dial turned to maximum.

Does the newspaper lift beyond 45 degrees?

Check and clean machine

Please follow the steps in the video.

Find the text version of the step-by-step guide instead, under "Has this resolved the issue?"

Check and clean machine

Loop amplifier - clean with a dry or damp cloth.

Shroud - clean with a dry cloth or soft brush.

Try the paper test again.

Has checking the loop amplifier and shroud resolved the problem?

The following areas should be checked and cleaned to maintain the machine's performance.

Loop amplifier - clean with a dry or damp cloth.

Main body - clean with a dry cloth

Shroud - clean with a dry cloth or soft brush

WARNING: Do not use polish or detergent on any part of the machine.

Troubleshooting image

Has this resolved the problem?

Run heater at highest temperature

The heating elements turn on one at a time and so this is to be expected when the machine first turns on.

Run the heater for 1 minute at the highest temperature setting.

Has this resolved the problem?

Turn machine off

Please turn the machine off and back on again.

Troubleshooting image

Has turning the machine off and on resolved the problem?

We need a little more information to help us solve your issue.

But our Customer Support Team will be able to solve your problem.

Please contact our team via live chat.

Enable Cooling mode

Unlike the AM04/AM05 the AM09 does not need to be set to 0°C to enable cooling mode.

Turn the machine on.

Troubleshooting image

To turn the heater off and use cool air mode press the BLUE Thermostat Control button. The power button light on the main body will change from red to blue.

Change the airflow speed using the Airflow Speed Control.

NB: The fan speed setting is between 1-10.

Has using the blue thermostat button and changing the airflow resolved the problem?

Retry machine at 37°C/99°F

1) On/Off 2) Cooling mode 3) Airflow speed 4) Heating control 5) Sleep timer 6) Oscillation 7) Focused mode 8) Diffused mode

Troubleshooting image

The power button will turn red for Heating mode.

Each time heating mode is selected the machine conducts a short calibration cycle, during this the airflow will be automatically controlled, once the cycle is complete it will revert to the selected airflow speed.

Has this resolved the problem?

Test oscillation

Before switching on, please make sure the fan is positioned so that the airflow or oscillation is not obstructed.

We need a little more information to help us solve your issue.

Please contact our customer service team via live chat.

Oscillating range

The machine should oscillate within 70 degrees from one side to another.

Troubleshooting image

Does the machine oscillate outside of this range?

We need a little more information to help us solve your issue.

But our Customer Support Team will be able to solve your problem.

Please contact our team via live chat.

Has this resolved the issue?

We need a little more information to help us solve your issue.

But our Customer Support Team will be able to solve your problem.

Please contact our team via live chat.

Checking oscillation

The AM09 has a one touch smooth oscillation action.

When in oscillation mode the machine will temporarily stop oscillating when any of the control buttons are pressed.

If the oscillation doesn't work carry out the following checks:

Check the feet are attached correctly

Check the six feet on the base of the Main body are present and clean.

If the heater is placed on a low friction surface, e.g. highly polished or oily, the Main body may slide.

Has this resolved the problem?

Test the other buttons on the remote

1) On/Off 2) Cooling mode 3) Airflow speed 4) Heating control 5) Sleep timer 6) Oscillation 7) Focused mode 8) Diffused mode

Troubleshooting image

Has this resolved the problem?

Change the remote battery

Unscrew the remote control's battery compartment.

Troubleshooting image

Loosen the base and pull it away from the remote. Replace the battery with type CR 2032.

Troubleshooting image

Has this resolved the problem?

Oscillation speed

The machine should take approximately 4 seconds to oscillate from one side to the other.

Does the machine oscillate outside of this speed?

We need a little more information to help us solve your issue.

Please contact our customer service team via live chat.

Test the oscillation button on the remote

Ensure correct button on remote is being pressed to adjust the oscillation.

Troubleshooting image

Test the other buttons on the remote

1) On/Off 2) Cooling mode 3) Airflow speed 4) Heating control 5) Sleep timer 6) Oscillation 7) Focused mode 8) Diffused mode

Troubleshooting image

Has this resolved the problem?

Target temperature explanation

The temperature set on the machine is the target temperature of the room, not the temperature of the fan.

The temperature from the fan when in heating mode will not change.

Troubleshooting image

Has this resolved the problem?

The use of an extension cable is not recommended.

Reduced airflow

When using heating mode, the machine is working harder to both heat and circulate the air. Whilst doing so, the machine intelligently monitors the current drawn so it doesn't trip the domestic circuit.

The machine will prioritise heating the air, so you may find the airflow feels reduced in heating mode.

Has this resolved the problem?

Paper test

The fan has a strong, smooth airflow when switched on. The airflow should be strong enough to lift a sheet of newspaper past 45 degrees.

Troubleshooting image

Hold a newspaper approximately 2 meters (6' 6'') away from the product with the airflow control dial turned to maximum.

Does the newspaper lift beyond 45 degrees?

Check the other functions on the remote

ON/OFF.

Troubleshooting image

Cool air mode

Troubleshooting image

Airflow speed control

Troubleshooting image

Temperature control

Troubleshooting image

Sleep timer function

Troubleshooting image

Oscillation On/Off.

Troubleshooting image

Personal heating mode

Troubleshooting image

Diffused heating mode

Troubleshooting image

Do the other functions on the remote work?

We need a little more information to help us solve your issue.

But our Customer Support Team will be able to solve your problem.

Please contact our team via live chat.

Replace the battery

Unscrew the remote control's battery compartment.

Troubleshooting image

Loosen the base and pull it away from the remote. Replace the battery with type CR 2032.

Troubleshooting image

Has changing the battery resolved the problem?

Replacement remote required

This issue can be resolved by ordering a replacement remote control.

Has the remote been replaced before?

Please call us to resolve this problem.

It looks like the Remote control isn't working. We know how to fix it – we just can’t do it online.

One of our Dyson experts can help you get the parts or assistance you need.

Remote control

Part no. 966538-01

Stores magnetically on top of your machine.

€33.82

Remote control

Remote control

Part no. 966538-01

Stores magnetically on top of your machine.

€33.82

We need a little more information to help us solve your issue.

Please contact our customer service team via live chat.

Please select the appropriate option

We need a little more information to help us solve your issue.

But our Customer Support Team will be able to solve your problem.

Please contact our team via live chat.

Wipe the machine

The following areas should be checked and cleaned to maintain the machine's performance.

Loop amplifier - clean with a dry or damp cloth.

Main body - clean with a dry cloth

Shroud - clean with a dry cloth or soft brush

Troubleshooting image

Has this resolved the problem?

Hard reset

Unplug the machine and leave it for 10 seconds.

Troubleshooting image

Plug the machine back in and retest.

Has this resolved the problem?

Which F code is displaying?

Reset machine

The display will show a fault code and the LED around the power button will flash red.

The oscillation, airflow, and timer controls will be locked out on the remote.

The power button on both the remote and main body will still work.

Troubleshooting image

To reset the appliance, turn the power off (using either the power button on the remote or the Main body) wait 60 seconds and then turn the machine back on.

The fault code should have cleared.

If the power cycle does not work try a 'hard reset'.

Turn the power OFF and unplug the machine, or switch off at the mains socket, for 30 seconds and then turn back ON.

The error code should have cleared.

Has this resolved the issue?

Reset machine

The display will show a fault code and the LED around the power button will flash red.

The oscillation, airflow, and timer controls will be locked out on the remote.

The power button on both the remote and main body will still work.

Troubleshooting image

To reset the appliance, turn the power off (using either the power button on the remote or the main body) wait 60 seconds and then turn the machine back on.

The fault code should have cleared.

If the power cycle does not work try a 'hard reset'.

Turn the power OFF and unplug the machine, or switch off at the mains socket, for 30 seconds and then turn back ON.

The error code should have cleared.

Has this resolved the issue?

Reset machine

The display will show a fault code and the LED around the power button will flash red.

The oscillation, airflow, and timer controls will be locked out on the remote.

The power button on both the remote and main body will still work.

To reset the appliance, turn the power off (using either the power button on the remote or the main body) wait 60 seconds and then turn the machine back on.

The fault code should have cleared.

If the power cycle does not work try a 'hard reset'.

Turn the power OFF and unplug the machine, or switch off at the mains socket, for 30 seconds and then turn back ON.

The error code should have cleared.

Has this resolved the issue?

Reset machine

The display will show a fault code and the LED around the power button will flash red.

The oscillation, airflow, and timer controls will be locked out on the remote.

The power button on both the remote and main body will still work.

To reset the appliance, turn the power off (using either the power button on the remote or the main body) wait 60 seconds and then turn the machine back on.

The fault code should have cleared.

If the power cycle does not work try a 'hard reset'.

Turn the power OFF and unplug the machine, or switch off at the mains socket, for 30 seconds and then turn back ON.

The error code should have cleared.

Has this resolved the issue?

Reset machine

The display will show a fault code and the LED around the power button will flash red.

The oscillation, airflow, and timer controls will be locked out on the remote.

The power button on both the remote and main body will still work.

To reset the appliance, turn the power off (using either the power button on the remote or the main body) wait 60 seconds and then turn the machine back on.

The fault code should have cleared.

If the power cycle does not work try a 'hard reset'.

Turn the power OFF and unplug the machine, or switch off at the mains socket, for 30 seconds and then turn back ON.

The error code should have cleared.

Has this resolved the issue?

Hard reset

Unplug the machine and leave it for 10 seconds.

Troubleshooting image

Plug the machine back in and retest.

Has this resolved the problem?

Power cycle

Before following the steps, press the power button with a firm touch for 1 second.

Troubleshooting image

Hard reset

If the power cycle does not work try a 'hard reset'.

Turn the power OFF and unplug the machine, or switch off at the mains socket, for 30 seconds and then turn back ON.

Troubleshooting image

Plug the machine back in and retest.

Has this resolved the problem?

Does the machine have power?

We need a little more information to help us solve your issue.

Please contact our customer service team via live chat.

Please select the appropriate option

We need a little more information to help us solve your issue.

But our Customer Support Team will be able to solve your problem.

Please contact our team via live chat.

Please call us to resolve this problem.

It looks like the Remote control isn't working. We know how to fix it – we just can’t do it online.

One of our Dyson experts can help you get the parts or assistance you need.

Remote control

Part no. 966538-01

Stores magnetically on top of your machine.

€33.82

Remote control

Remote control

Part no. 966538-01

Stores magnetically on top of your machine.

€33.82

We need a little more information to help us solve your issue.

But our Customer Support Team will be able to solve your problem.

Please contact our team via live chat.

How to tilt the machine

Place the machine on a flat, stable surface.

Tilt the loop amplifier forwards slightly.

The loop should stay in the position it was left in.

Has this resolved the problem?
