Let's get your machine working

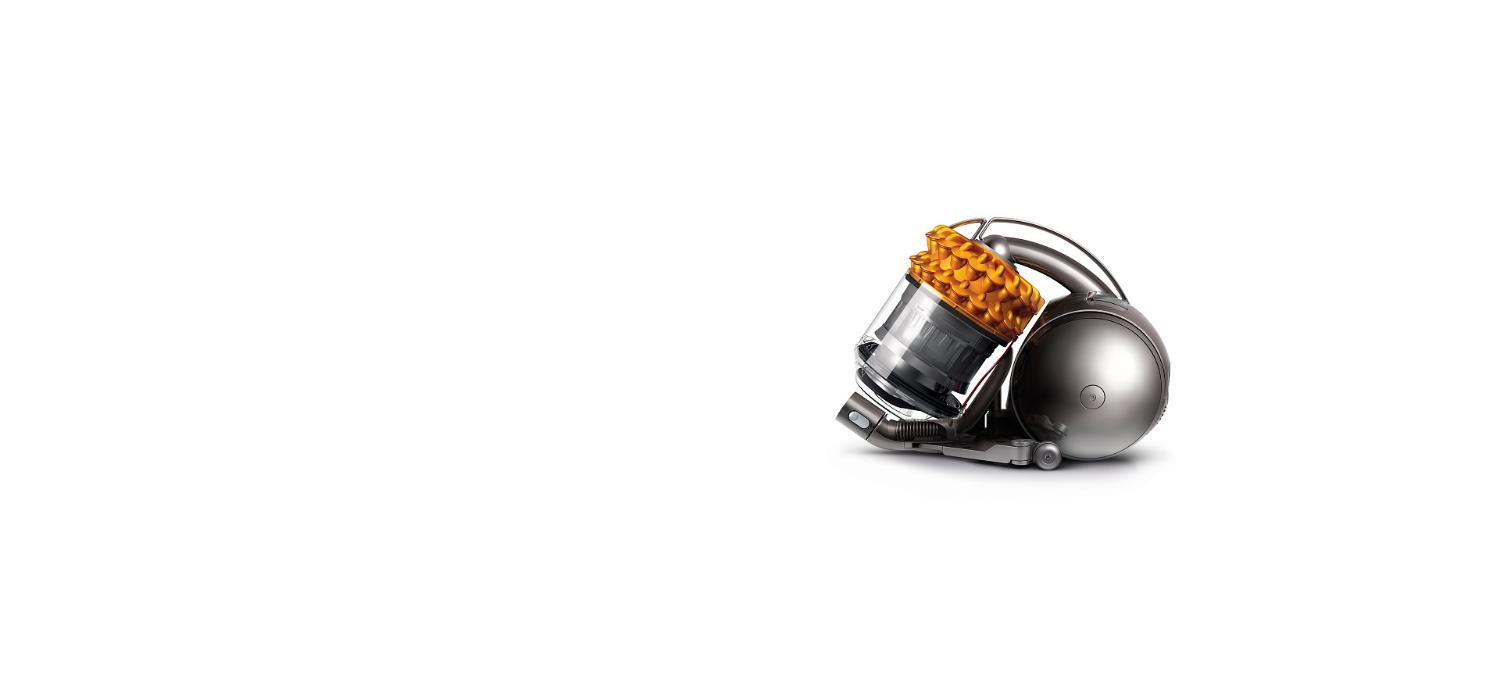

Dyson Cinetic Multi Floor™
See all steps

Please select the appropriate option

Checking the machine for blockages

Remove the bin from the machine by pressing the bin release catch located to the side of the bin.

Troubleshooting image

Check the openings of the duct and bin for any blockages and remove as necessary.

Troubleshooting image

Empty the bin

Empty the bin and ensure the bin base remains open.

Troubleshooting image

Remove the bin and turn on the machine

When the bin lid is open, a small silver button behind the red opening mechanism should be exposed. Press the silver button.

Separate the cyclone unit from the clear bin.

Troubleshooting image

Cleaning the bin

WARNING: Clean the clear bin with cold water only.

Do not use detergents, polishes or air fresheners to clean the clear bin.

Do not put the clear bin in a dishwasher.

Do not immerse the cyclone in water or pour water into the cyclones.

Ensure the clear bin is completely dry before replacing.

Troubleshooting image

Clean the cyclone

Clean the cyclone shroud with a cloth or the Combination tool to remove lint and dust.

WARNING: Do not use water.

Troubleshooting image

Refit the bin.

Is there anything else we can help you with?

Please select the appropriate option

Checking the machine for blockages

Remove any tools from the extension tube.

Troubleshooting image

Fully extend the extension tube by pressing the red button.

Troubleshooting image

Turn the machine on and place your hand over the end of the extension tube.

Troubleshooting image

Is the suction strong or weak?

Which floor tool

Dual mode floor tool.

Troubleshooting image

Musclehead floor tool

Troubleshooting image

Turbine head

Troubleshooting image

Which floor tool are you experiencing an issue with?

How to use the floor tool

For use on carpet flooring, the purple seal should be in the 'up' position.

Troubleshooting image

For use on hard flooring, the purple seal should be in the 'down' position.

Troubleshooting image

Has checking the floor tool settings resolved the problem?

We need a little more information to help us solve your issue.

Please start a WhatsApp conversation or contact our team on 01-475-7109. If you’re using the Dyson Zone™ headphones, please contact us through our helpline or directly on Live Chat to connect with an Expert. To start a Live Chat, just click the purple icon at the bottom of the page and choose ‘Product help and support’, then select ‘Headphones support’).

Check the floor tool for blockages and damage

Fully remove the floor tool from the machine.

Troubleshooting image

Check both inlets for blockages and remove as necessary.

Troubleshooting image

Has checking the bin and cyclone resolved the problem?

Checking the machine for blockages

Please follow the steps in the video.

Has checking for blockages resolved the problem?

Check the extension tube, Wand handle and hose

Separate the extension tube from the Wand handle by pressing the release catch on the Wand handle.

Troubleshooting image

Remove the Wand handle from the hose by pressing the release catch on the hose.

Troubleshooting image

Press the release catch and remove the hose from the appliance.

Troubleshooting image

Check the extension tube, Wand handle and hose for blockages and remove as necessary.

Troubleshooting image

Check the hose inlet

Unscrew the two Phillips screws on the clear bin locator bracket. (Do not remove any other screws.) Remove the bracket.

Troubleshooting image

Firmly twist the flexible inspection hose away from the inlet next.

Troubleshooting image

Inspect for blockages and remove as necessary.

Troubleshooting image

Refit the flexible inspection hose and clear bin locator bracket.

Troubleshooting image

Rebuild and test the machine.

Has checking the machine for blockages resolved the issue?

Cleaning the bin and cyclone

Remove the bin from the machine by pressing the bin release catch located to the side of the bin.

Troubleshooting image

Check the openings of the duct and bin for any blockages and remove as necessary.

Troubleshooting image

When the bin lid is open, a small silver button behind the red opening mechanism should be exposed. Press the silver button.

Separate the cyclone unit from the clear bin.

Troubleshooting image

Cleaning the cyclone

Clean the cyclone shroud with a cloth or the Combination tool to remove lint and dust.

WARNING: Do not use water.

Troubleshooting image

WARNING: Do not wash the cyclone.

Troubleshooting image

Reassemble and test machine.

Has checking the bin and cyclone resolved the problem?

We need a little more information to help us solve your issue.

But our Customer Support Team will be able to solve your problem.

Please start a WhatsApp conversation or contact our team on 01-475-7109. If you’re using the Dyson Zone™ headphones, please contact us through our helpline or directly on Live Chat to connect with an Expert. To start a Live Chat, just click the purple icon at the bottom of the page and choose ‘Product help and support’, then select ‘Headphones support’).

We need a little more information to help us solve your issue.

But our Customer Support Team will be able to solve your problem.

Please start a WhatsApp conversation or contact our team on 01-475-7109. If you’re using the Dyson Zone™ headphones, please contact us through our helpline or directly on Live Chat to connect with an Expert. To start a Live Chat, just click the purple icon at the bottom of the page and choose ‘Product help and support’, then select ‘Headphones support’).

How to use the Musclehead floor tool

The bleed valves can be opened if there is too much suction. If the performance is poor with the bleed valve open, they should be closed again.

Troubleshooting image

Has checking the bleed valve resolved the problem?

Checking the Musclehead for blockages

Remove the Musclehead from the extension tube.

Troubleshooting image

Check the neck and underneath the floor tool and remove any blockages as necessary.

Troubleshooting image

Has checking the floor tool resolved the problem?

We need a little more information to help us solve your issue.

But our Customer Support Team will be able to solve your problem.

Please start a WhatsApp conversation or contact our team on 01-475-7109. If you’re using the Dyson Zone™ headphones, please contact us through our helpline or directly on Live Chat to connect with an Expert. To start a Live Chat, just click the purple icon at the bottom of the page and choose ‘Product help and support’, then select ‘Headphones support’).

The model shown may vary from the product selected but the process remains the same.

Using the Turbine head

The Brush bar on the Turbine head will start spinning as soon as the machine is turned on. You can toggle the Brush bar spin speed by pulling the air release trigger on the Wand handle.

There is no need to turn the Brush bar on and off for different floor types as the floor tool has a row of anti-static carbon fibre filaments to remove fine dust from hard floors, and stiff nylon brushes remove ground-in dirt from carpets. There's no need to turn the Brush bar off when moving from one floor type to another.

Troubleshooting image

Has checking the floor tool resolved the problem?

Checking the floor tool

Remove the Turbine head from the extension Wand by pressing the release catch.

Troubleshooting image

Use a coin to turn the fastener anti-clockwise and remove the Brush bar.

Troubleshooting image

Remove the Brush bar from the Turbine head.

Troubleshooting image

Clean any hair, thread and debris from the brushbar.

Troubleshooting image

Check the opening of the floor tool for blockages and remove if necessary.

Troubleshooting image

Refit the Brush bar and refit the end cap, turning clockwise to lock.

Troubleshooting image

Refit the brushbar and refit the end cap, turning clockwise to lock.

Has checking the floor tool resolved the problem?

We need a little more information to help us solve your issue.

But our Customer Support Team will be able to solve your problem.

Please start a WhatsApp conversation or contact our team on 01-475-7109. If you’re using the Dyson Zone™ headphones, please contact us through our helpline or directly on Live Chat to connect with an Expert. To start a Live Chat, just click the purple icon at the bottom of the page and choose ‘Product help and support’, then select ‘Headphones support’).

Checking the machine for blockages

Please follow the steps in the video.

Has checking for blockages resolved the problem?

Please select the appropriate option

We need a little more information to help us solve your issue.

But our Customer Support Team will be able to solve your problem.

Please start a WhatsApp conversation or contact our team on 01-475-7109. If you’re using the Dyson Zone™ headphones, please contact us through our helpline or directly on Live Chat to connect with an Expert. To start a Live Chat, just click the purple icon at the bottom of the page and choose ‘Product help and support’, then select ‘Headphones support’).

When did the machine last have power?

Thermal cut out

Most Dyson vacuums have a built in safety system that stops the machine if it begins to overheat. This usually happens because the filters need washing or your machine is blocked.

Carry out the performance checks, and if your machine cuts out unplug and leave for at least 2 hours to cool down.

Please select the appropriate option

Checking the machine for blockages

Please follow the steps in the video.

Has checking for blockages resolved the problem?

Check electrical supply

Is the power cord or plug damaged?

Are the other household appliances working?

Does the vacuum work when plugged into another socket?

Has checking the electrics resolved the problem?

We need a little more information to help us solve your issue.

But our Customer Support Team will be able to solve your problem.

Please start a WhatsApp conversation or contact our team on 01-475-7109. If you’re using the Dyson Zone™ headphones, please contact us through our helpline or directly on Live Chat to connect with an Expert. To start a Live Chat, just click the purple icon at the bottom of the page and choose ‘Product help and support’, then select ‘Headphones support’).

We need a little more information to help us solve your issue.

But our Customer Support Team will be able to solve your problem.

Please start a WhatsApp conversation or contact our team on 01-475-7109. If you’re using the Dyson Zone™ headphones, please contact us through our helpline or directly on Live Chat to connect with an Expert. To start a Live Chat, just click the purple icon at the bottom of the page and choose ‘Product help and support’, then select ‘Headphones support’).

Checking for blockages

Please follow the steps in the video.

Has checking for blockages resolved the problem?

Check the hose and seals

Remove the extension tube from the wand handle by pressing the grey switch on the handle.

Check there are no cracks in the handle.

Troubleshooting image

Remove the hose fully from the machine and check there are no rips or tears in the hose.

Troubleshooting image

Remove the bin fully from the machine and check that the inlet on the machine is not damaged.

Troubleshooting image

Check the inlet located on the Main body of the machine, ensure the seal is not torn.

Troubleshooting image

Check the lower duct hose is not torn or twisted.

Troubleshooting image

Remove the clear bin from the cyclone by pressing the silver button at the back of the cyclone.

Troubleshooting image

Attach the hose and bin to the machine ensuring they both click into place.

Troubleshooting image

Turn the machine on.

Troubleshooting image

Has this resolved the problem?

Please select the appropriate option

We need a little more information to help us solve your issue.

But our Customer Support Team will be able to solve your problem.

Please start a WhatsApp conversation or contact our team on 01-475-7109. If you’re using the Dyson Zone™ headphones, please contact us through our helpline or directly on Live Chat to connect with an Expert. To start a Live Chat, just click the purple icon at the bottom of the page and choose ‘Product help and support’, then select ‘Headphones support’).

Checking the machine for blockages

Please follow the steps in the video.

Has checking for blockages resolved the problem?

Checking the floor tool

The Brush bar on the Turbine head will start spinning as soon as the machine is turned on. You can toggle the Brush bar spin speed by pulling the air release trigger on the Wand handle.

There is no need to turn the Brush bar on and off for different floor types as the floor tool has a row of anti-static carbon fibre filaments to remove fine dust from hard floors, and stiff nylon brushes remove ground-in dirt from carpets. There's no need to turn the Brush bar off when moving from one floor type to another.

Remove the Turbine head from the extension Wand by pressing the release catch.

Troubleshooting image

Use a coin to turn the fastener anti-clockwise and remove the brushbar.

Troubleshooting image

Remove the Brush bar from the floor tool.

Troubleshooting image

Clean any hair, thread and debris from the brushbar.

Troubleshooting image

Check the opening of the floor tool for blockages and remove if necessary.

Troubleshooting image

Refit the brushbar and refit the end cap, turning clockwise to lock.

Troubleshooting image

Rebuild and test the machine.

Has checking the floor tool resolved the problem?

Checking the machine for blockages

Please follow the steps in the video.

Has checking for blockages resolved the problem?

Cleaning the bin and cyclone

Remove the bin from the machine by pressing the bin release catch located to the side of the bin.

Troubleshooting image

Check the openings of the duct and bin for any blockages and remove as necessary.

Troubleshooting image

When the bin lid is open, a small silver button behind the red opening mechanism should be exposed. Press the silver button.

Separate the cyclone unit from the clear bin.

Troubleshooting image

Cleaning the cyclone

Clean the cyclone shroud with a cloth or the Combination tool to remove lint and dust.

WARNING: Do not use water.

Troubleshooting image

WARNING: Do not wash the cyclone.

Troubleshooting image

Reassemble and test machine.

Has checking the bin and cyclone resolved the problem?

We need a little more information to help us solve your issue.

But our Customer Support Team will be able to solve your problem.

Please start a WhatsApp conversation or contact our team on 01-475-7109. If you’re using the Dyson Zone™ headphones, please contact us through our helpline or directly on Live Chat to connect with an Expert. To start a Live Chat, just click the purple icon at the bottom of the page and choose ‘Product help and support’, then select ‘Headphones support’).

Check the extension tube, Wand handle and hose

Separate the extension tube from the Wand handle by pressing the release catch on the Wand handle.

Troubleshooting image

Remove the Wand handle from the hose by pressing the release catch on the hose.

Troubleshooting image

Press the release catch and remove the hose from the appliance.

Troubleshooting image

Check the extension tube, Wand handle and hose for blockages and remove as necessary.

Troubleshooting image

Unscrew the two Phillips screws on the clear bin locator bracket. (Do not remove any other screws.) Remove the bracket.

Troubleshooting image

Firmly twist the flexible inspection hose away from the inlet next.

Troubleshooting image

Inspect for blockages and remove as necessary.

Troubleshooting image

Refit the flexible inspection hose and clear bin locator bracket.

Troubleshooting image

Rebuild and test the machine.

Has checking the machine for blockages resolved the issue?

Using the cable

Ensure the machine is switched off.

Troubleshooting image

Unplug the machine before rewinding the cable.

Troubleshooting image

If the cable does not rewind, firmly pull it out and fully extend it until the red tape is visible.

Troubleshooting image

The cord rewind button needs to be pressed down firmly to retract the cord for storage after use. When the button is pressed down far enough you should feel and hear a click, and the cord will retract.

Troubleshooting image

Has this resolved the problem?

Please select the appropriate option

We need a little more information to help us solve your issue.

But our Customer Support Team will be able to solve your problem.

Please start a WhatsApp conversation or contact our team on 01-475-7109. If you’re using the Dyson Zone™ headphones, please contact us through our helpline or directly on Live Chat to connect with an Expert. To start a Live Chat, just click the purple icon at the bottom of the page and choose ‘Product help and support’, then select ‘Headphones support’).

Please call us to resolve this problem.

It looks like the Combination tool isn't working. We know how to fix it – we just can’t do it online.

One of our Dyson experts can help you get the parts or assistance you need.

Combination tool

Part no. 918068-02

Two tools in one, for versatile cleaning around the home.

€27.50

Combination tool

Combination tool

Part no. 918068-02

Two tools in one, for versatile cleaning around the home.

€27.50

We need a little more information to help us solve your issue.

But our Customer Support Team will be able to solve your problem.

Please start a WhatsApp conversation or contact our team on 01-475-7109. If you’re using the Dyson Zone™ headphones, please contact us through our helpline or directly on Live Chat to connect with an Expert. To start a Live Chat, just click the purple icon at the bottom of the page and choose ‘Product help and support’, then select ‘Headphones support’).

Please call us to resolve this problem.

It looks like the Dual-mode floor tool isn't working. We know how to fix it – we just can’t do it online.

One of our Dyson experts can help you get the parts or assistance you need.

Dual-mode floor tool

Part no. 966247-03

Adjustable floor tool for optimum suction across all floor surfaces.

€33.82

Dual-mode floor tool

Dual-mode floor tool

Part no. 966247-03

Adjustable floor tool for optimum suction across all floor surfaces.

€33.82

We need a little more information to help us solve your issue.

But our Customer Support Team will be able to solve your problem.

Please start a WhatsApp conversation or contact our team on 01-475-7109. If you’re using the Dyson Zone™ headphones, please contact us through our helpline or directly on Live Chat to connect with an Expert. To start a Live Chat, just click the purple icon at the bottom of the page and choose ‘Product help and support’, then select ‘Headphones support’).

You might need a replacement part.

It looks like the Extension tube is not working. You can solve this by ordering a new one below.

Extension tube

Part no. 917260-09

Combines with other Dyson tools to provide a longer reach.

€33.82

Extension tube

Extension tube

Part no. 917260-09

Combines with other Dyson tools to provide a longer reach.

€33.82

Out of stock.

€33.82

Keep me updated

We need a little more information to help us solve your issue.

But our Customer Support Team will be able to solve your problem.

Please start a WhatsApp conversation or contact our team on 01-475-7109. If you’re using the Dyson Zone™ headphones, please contact us through our helpline or directly on Live Chat to connect with an Expert. To start a Live Chat, just click the purple icon at the bottom of the page and choose ‘Product help and support’, then select ‘Headphones support’).

Please call us to resolve this problem.

It looks like the Musclehead floor tool isn't working. We know how to fix it – we just can’t do it online.

One of our Dyson experts can help you get the parts or assistance you need.

Musclehead floor tool

Part no. 965577-01

Ultra-low profile head, for cleaning under furniture. Self-adjusts to seal in suction across all floor types.

€60.27

Musclehead floor tool

Part no. 965577-01

Ultra-low profile head, for cleaning under furniture. Self-adjusts to seal in suction across all floor types.

€60.27

Please call us to resolve this problem.

It looks like the Stair tool isn't working. We know how to fix it – we just can’t do it online.

One of our Dyson experts can help you get the parts or assistance you need.

Stair tool

Part no. 914417-01

For vacuuming narrow or difficult-to-reach carpeted areas, such as stairs and corners.

€27.50

Stair tool

Stair tool

Part no. 914417-01

For vacuuming narrow or difficult-to-reach carpeted areas, such as stairs and corners.

€27.50

We need a little more information to help us solve your issue.

But our Customer Support Team will be able to solve your problem.

Please start a WhatsApp conversation or contact our team on 01-475-7109. If you’re using the Dyson Zone™ headphones, please contact us through our helpline or directly on Live Chat to connect with an Expert. To start a Live Chat, just click the purple icon at the bottom of the page and choose ‘Product help and support’, then select ‘Headphones support’).

We need a little more information to help us solve your issue.

But our Customer Support Team will be able to solve your problem.

Please start a WhatsApp conversation or contact our team on 01-475-7109. If you’re using the Dyson Zone™ headphones, please contact us through our helpline or directly on Live Chat to connect with an Expert. To start a Live Chat, just click the purple icon at the bottom of the page and choose ‘Product help and support’, then select ‘Headphones support’).

We need a little more information to help us solve your issue.

But our Customer Support Team will be able to solve your problem.

Please start a WhatsApp conversation or contact our team on 01-475-7109. If you’re using the Dyson Zone™ headphones, please contact us through our helpline or directly on Live Chat to connect with an Expert. To start a Live Chat, just click the purple icon at the bottom of the page and choose ‘Product help and support’, then select ‘Headphones support’).

Please call us to resolve this problem.

It looks like the Clear bin isn't working. We know how to fix it – we just can’t do it online.

One of our Dyson experts can help you get the parts or assistance you need.

Clear bin

Part no. 948652-01

Replacement clear bin for your Dyson vacuum cleaner.

€46.12

Clear bin

Clear bin

Part no. 948652-01

Replacement clear bin for your Dyson vacuum cleaner.

€46.12

We need a little more information to help us solve your issue.

But our Customer Support Team will be able to solve your problem.

Please start a WhatsApp conversation or contact our team on 01-475-7109. If you’re using the Dyson Zone™ headphones, please contact us through our helpline or directly on Live Chat to connect with an Expert. To start a Live Chat, just click the purple icon at the bottom of the page and choose ‘Product help and support’, then select ‘Headphones support’).

Checking the machine for blockages

Please follow the steps in the video.

Getting started - video

Please follow the steps in the video.

Is there anything else we can help you with?

Using your machine

Attach the hose to the hose inlet on the front of the machine.

Troubleshooting image

Clip the hose to the rear of the handle.

Troubleshooting image

Clip the Wand handle to the extension tube.

Troubleshooting image

Press the release catch on the extension tube to extend fully, ensuring it 'clicks' into place.

Troubleshooting image

Attach the floor tool to the extension tube.

Troubleshooting image

Insert the tools into the holster and attach to the extension tube.

Troubleshooting image

Is there anything else we can help you with?

Storing the tools

Store the Turbine head by inserting it in the clip at the back of the Main body.

Troubleshooting image

Storing the accessories

  • Attach the tools to the tool holster.
  • Clip the tool holster to the extension tube.
Troubleshooting image

Is there anything else we can help you with?

Hold the plug when rewinding onto cable reel. Do not allow the plug to whip when rewinding.

Using the cable

Turn the machine off.

Troubleshooting image
  • Ensure the machine is unplugged.
Troubleshooting image

To retract the cable, press the button firmly until it clicks and the cable rewinds.

Troubleshooting image

Is there anything else we can help you with?

Serial number location

Underneath the machine between the wheels.

Troubleshooting image

Is there anything else we can help you with?

Please open the PDF for the user guide.

Is there anything else we can help you with?

How to attach the accessories

The accessory tools can be attached to the extension tube, Wand handle or hose.

Ensure the click securely into place before use.

Troubleshooting image

Is there anything else we can help you with?

Using the suction release trigger

To reduce the suction pull the release trigger.

Troubleshooting image

Is there anything else we can help you with?

Using the extension tube

Press the release catch on the extension tube to extend fully, ensuring it 'clicks' into place.

Troubleshooting image

Is there anything else we can help you with?

Which floor tool

Dual mode floor tool.

Troubleshooting image

Musclehead floor tool

Troubleshooting image

Turbine head

Troubleshooting image

How to use the Dual mode floor tool

Connect the dual mode floor tool to the extension tube. You can adjust the extension tube as you wish using the red catch located on the extension tube.

Troubleshooting image
  • With the brushes down, only use on carpets.
Troubleshooting image
  • With the brushes down. Use on smooth/hard flooring.
Troubleshooting image

Is there anything else we can help you with?

Using the Musclehead floor tool

The Musclehead will automatically adjust from hard floors to carpets and carpet to hard floors. Therefore it does not need to be manually adjusted for different floor types.

Connect the floor tool to the extension tube, ensuring it clicks into place.

  • You can adjust the extension tube as you wish by pressing the red catch on the extension tube.
Troubleshooting image

The bleed valves can be opened if there is too much suction. If the performance is poor with the bleed valve open, they should be closed again.

Troubleshooting image

Is there anything else we can help you with?

Using the Turbine head

There is no need to turn the Brush bar on and off for different floor types, the floor tool has a row of anti-static carbon fibre filaments to remove fine dust from hard floors, and stiff nylon brushes remove ground-in dirt from carpets. There's no need to turn the Brush bar off when moving from one floor type to another.

Connect the Turbine head to the extension tube and ensure the extension tube is fully extended.

Troubleshooting image

To reduce the suction pull the release trigger.

Troubleshooting image

Is there anything else we can help you with?

Clean the bin and cyclone

Debris can become stuck between the shroud and the bin, this could be caused by static or overfilling the bin. Do not fill the bin past the MAX mark.

Remove the bin

When the bin lid is open a small silver button behind the red opening mechanism should be exposed; press the silver button. Separate the cyclone unit from the clear bin.

Troubleshooting image

Cleaning the bin

Clean the clear bin with cold water only.

Do not use detergents, polishes or air fresheners to clean the clear bin.

Do not put the clear bin in a dishwasher.

Do not immerse the cyclone in water or pour water into the cyclones.

Ensure the clear bin is completely dry before replacing.

Troubleshooting image

Clean the cyclone

Clean the cyclone shroud with a cloth or the Combination tool to remove lint and dust.

WARNING: Do not use water.

Troubleshooting image

Refit the bin.

Is there anything else we can help with?

Emptying the bin

Remove the bin from the machine by pressing the bin release catch located to the side of the bin.

Troubleshooting image

Open the bin lid by pressing the red release button on top of the cyclone, be careful to do this somewhere to capture any dust securely.

Troubleshooting image

Cleaning the cyclone

Locate the shroud wiper and pull from its position to remove.

Use the shroud wiper to clean around the cyclone to remove any finer dust.

Check underneath the cyclone for any blockages and remove as necessary.

Troubleshooting image

Do not wash the cyclone.

Troubleshooting image

Is there anything else we can help with?

Please open the PDF for the user guide.

Is there anything else we can help you with?
