Let's get your machine working

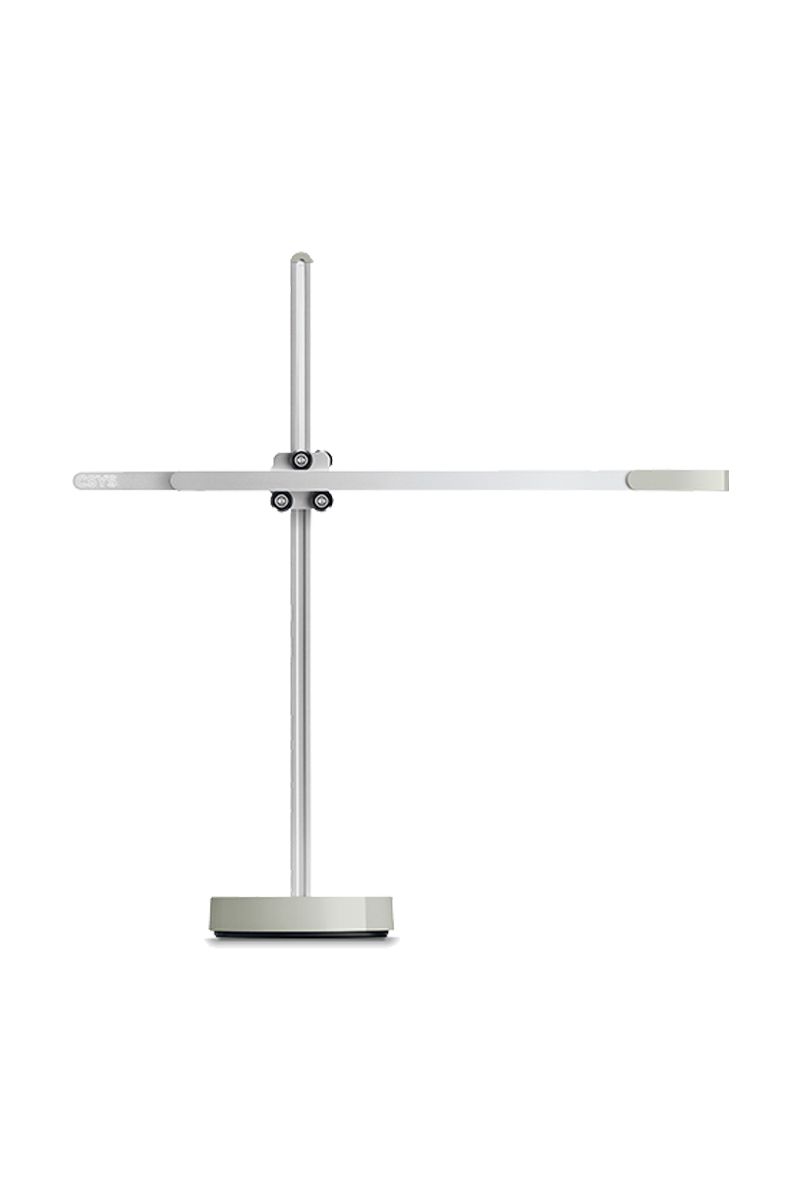

Dyson CSYS 4K™ Desk light (Silver/White)
See all steps

Please select the appropriate option

Is this the first time the machine is being used?

Please check the following:

Is the power cord or plug damaged?

Check other household appliances.

Check the light in another socket.

Has checking the electrics resolved the problem?

We're glad the problem's been solved.

Please let us know if there's anything else we can help you with.

Carefully turn the light on its side.

Ensure the power cord is plugged into the centre of the base.

Carefully lay the cord through the indicated groove ensuring it does not become twisted.

Place the light upright ensuring cord remains in the slot.

Ensure the light is plugged into a wall socket and switched on.

Has checking the power cord resolved the problem?

Check the dimmer switch

Press the power button to switch on.

Hold the switch down to use the dimmer switch.

Has checking the dimmer switch resolved the problem?

Check wheel carriage plates

Check that the wheel carriage plates are screwed together currently.

Follow the procedure image for correct assembly.

Disconnect the carriage plates

Ensure the following before starting the checks.

Ensure the light is at the top before carrying out the checks. Failure to do this will cause the weight to drop.

Use Hex key provided to remove the three screws.

Be careful to capture all screws when they are loosened.

Hold the heat sink at all times when removing from the upright.

Ensure the red tape on the plates covering the contacts has been removed.

Please follow the next step.

Align the square shapes and screw holes on the heat sink arm and the upright.

Press the two parts together with one hand.

Loosely screw in the three screws.

Recheck alignment.

Proceed to screw until securely clamped.

Has checking the carriage plates resolved the problem?

Unplug the light and leave for 5 minutes.

Plug the light in and switch on.

Has leaving the power off resolved the problem?

Please call us to resolve this problem.

It looks like the Power supply isn't working. We know how to fix it – we just can’t do it online.

One of our Dyson experts can help you get the parts or assistance you need.

Power supply

Part no. 967247-06

Replacement power supply for your Dyson light.

€60.27

Power supply

Power supply

Part no. 967247-06

Replacement power supply for your Dyson light.

€60.27

We're glad the problem's been solved.

Please let us know if there's anything else we can help you with.

Check wheel carriage plates

Check that the wheel carriage plates are screwed together currently.

Disconnect the carriage plates

Follow the procedure image for correct assembly.

Ensure the following before starting the checks.

Ensure the light is at the top before carrying out the checks. Failure to do this will cause the weight to drop.

Use Hex key provided to remove the three screws.

Be careful to capture all screws when they are loosened.

Hold the heat sink at all times when removing from the upright.

Ensure the red tape on the plates covering the contacts has been removed.

Please follow the next step.

Reassemble the carriage plates

Align the square shapes and screw holes on the heat sink arm and the upright.

Loosely screw in the three screws.

Recheck alignment.

Proceed to screw until securely clamped.

Has checking the carriage plates resolved the problem?

Check electrical supply

Please check the following:

Is the power cord or plug damaged?

Check other household appliances.

Check the light in another socket.

Has checking the electrics resolved the problem?

We need a little more information to help us solve your issue.

But our Customer Support Team will be able to solve your problem.

Please contact our team via live chat.

Check power cord

Carefully turn the light on its side.

Ensure the power cord is plugged into the centre of the base.

Carefully lay the cord through the indicated groove ensuring it does not become twisted.

Place the light upright ensuring the cord remains in the slot.

Ensure the light is plugged into a wall socket and switched on.

Has checking the power cord resolved the problem?

Check the dimmer switch

Press the power button to switch on.

Hold the switch down to use the dimmer switch.

Has checking the dimmer switch resolved the problem?

Check wheel carriage plates

Check that the wheel carriage plates are screwed together currently.

Follow the procedure image for correct assembly.

Disconnect the carriage plates

Ensure the following before starting the checks.

Ensure the light is at the top before carrying out the checks. Failure to do this will cause the weight to drop.

Use Hex key provided to remove the three screws.

Be careful to capture all screws when they are loosened.

Hold the heat sink at all times when removing from the upright.

Ensure the red tape on the plates covering the contacts has been removed.

Has checking the carriage plates resolved the problem?

Reassemble the carriage plates

Align the square shapes and screw holes on the heat sink arm and the upright.

Press the two parts together with one hand.

Loosely screw in the three screws.

Recheck alignment.

Proceed to screw until securely clamped.

Has reassembling the carriage plates resolved the problem?

Is the problem with the arm going backwards and forwards, up and down or both?

We need a little more information to help us solve your issue.

Please contact our customer service team via live chat.

We need a little more information to help us solve your issue.

Please contact our customer service team via live chat.

We need a little more information to help us solve your issue.

Please contact our customer service team via live chat.

We need a little more information to help us solve your issue.

But our Customer Support Team will be able to solve your problem.

Please contact our team via live chat.

How to assemble your Dyson light

Please follow the steps in the video.

Find the text version of the step-by-step guide instead, under "Is there anything else we can help you with?"

Please select the appropriate option

Getting started

Your box contents will include: the Instruction manual, the Power supply unit, a microfibre cloth, the Horizontal arm assembly, the Fixing pack and the Vertical assembly.

Carefully read the assembly and important safety instructions.

Stand the Vertical assembly on a flat surface.

Remove both pieces of red tape covering the electrical contacts.

Align the screw holes on the plates and press both parts together with one hand.

Loosely screw in the three screws using the provided Allen key.

Ensure the plates are aligned, then secure all three screws fully. Do not over tighten the screws.

Remove any packaging from the base of the Vertical assembly.

Turn the light on its side.

Carefully fit the cord into the indicated groove ensuring it's not twisted.

Place the light upright ensuring the cord remains in place.

Remove the transit tape and all packaging from the product.

Plug in the power supply unit and turn on the light using the button.

The light can be adjusted, vertically, horizontally and rotate through 360°. Adjust the position of the light by moving the arm not the weight.

CSYS lights have touch-sensitive, continuous dimming. Adjust the level of the light you need by keeping your finger held on the button.

Is there anything else we can help you with?

We're glad the problem's been solved.

Please let us know if there's anything else we can help you with.

Using the dimmer

Press the power button to switch on.

Hold the switch down to use the dimmer switch.

Is there anything else we can help you with?

How to reposition the Dyson light

The LED head can be positioned directionally in 3 axes.

Only use the heat sink arm to reposition.

Is there anything else we can help you with?
